Technology

Dental Implants Manila is committed in bringing the latest dental technology to you. We have researched, tested and invested on the most safe and efficient technology to suite each of our client’s need and budget. From computer 3D modeled and sculpted crowns (teeth), to oldschool manual furnace baked ceramic crowns, we have it all for you.

With all these technology at our command, Dental Implants Manila has become a truly one stop dental center for all your dental needs. From dental surgery to simple cleaning, we have the expertise and equipment to give you the best and satisfactory service.

Click on the list below or scroll down
to find out more what technology we have to offer.

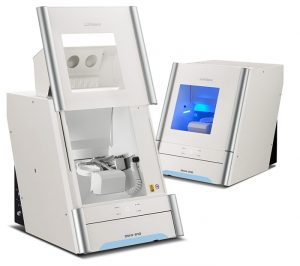

The Roland DWX-51D

Roland DWX-51D Dental Milling Machine is the result of more than 20 years of experience and ongoing development. The mill fits the needs of any size laboratory because it offers a compact design, clean, quiet operation, true precision machining and detailed anatomy.

The DWX-51D 5-Axis Dental Milling Machine is designed for effortless production of dental prosthetics. Built for precision, error-free milling, you don’t need any machine expertise to operate it. With touch-button controls and automated milling features, the production of high-quality bridges, crowns, inlays, onlays, abutments and other restorations out of 98 mm discs and blocks has been made virtually foolproof.

Highlights & Specifications

  • Open architecture allows users to work with the latest materials, CAD/CAM software and scanners – without needing to rely on a single source
  •  Mill zirconia, wax, PMMA, composite resin, PEEK and other discs and pin-type blocks – produce precision inlays, onlays, copings, crowns, bridges and more
  •  Efficient ball screw-driven system with 5-axis simultaneous operation – mill complex prosthetics and full mouth restorations
  •  10-station Automatic Tool Changer (ATC)
  •  Simplified virtual control panel – calibrate, monitor tool life and run diagnostics
  •  Powerful dust collection system and anti-static ionizer for a clean milling environment
  •  Connect up to four DWX milling machines to one computer
  •  User replaceable spindle – no need to call out a technician
  •  Offers unmatched reliability and post-sales support that includes a two-year warranty



Watch the Roland DWX-51D in action

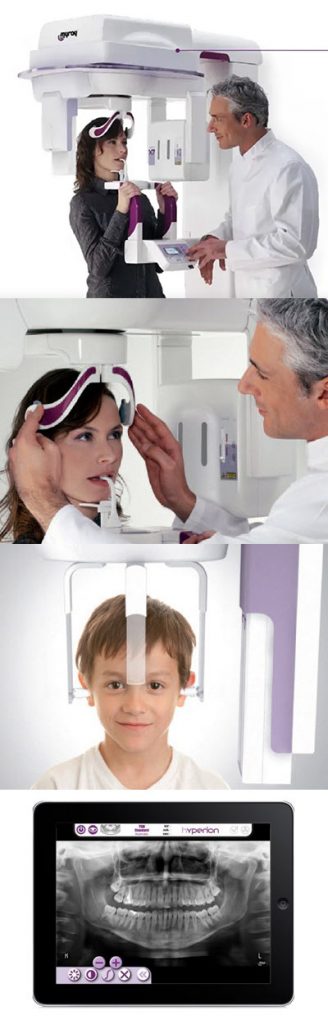

Hyperion X7

Hyperion features Morphology Recognition Technology (MRT) which automatically identifies patient size and all parameters required to ensure correct X-ray exposure.

Stress-free experience
Allow your patient to stand still, while the laser-guided multi-motor kinematics positions itself in a matter of seconds.
The face-to-face approach makes it comfortable for both dentist and patient. Reassuring eye contact with your patient is possible at all times. A fast scan reduces possibility of patient movement. 7.9 seconds for the child panoramic and just 9.2 seconds the adult panoramic.

Failsafe procedures
Via laser-guided multi-motor kinematics, Hyperion positions itself around your patient, reads the subject and scans accordingly. No standardized single rotation axis. Each exam is personalized to give you utmost diagnostic precision. With MRT technology there is no need to program exposure times or technical factors such as kV or mA levels, nor is it necessary to select patient build. Hyperion predicts your needs exactly.

X7 Cephalometric Teleradiography
The series X7 machines can host a teleradiography unit for anter-posterior, poster-anterior and lateral cranium scanning, including special projections such as the submentovertex. The primary servo-controlled collimator allows the user to select the area to be exposed. The secondary collimator is concealed within the rotating section until emerging during scanning. The machines in the X7 series can house a relocatable sensor or two permanent sensors.

Virtual control panel
The virtual control panel, which can be installed on a PC, allows all diagnostic activities to be controlled from a workstation. For example, the user can link up a mini tablet-PC with touch screen to pilot the machine while comfortably positioned outside the X-ray area. Store images on a memory card or share them over your local network through the industry standard Ethernet.

28 diagnostic programs
Standard orthopanoramic or paediatric projections with automatic selection of correct morphology.
Frontal and lateral views of the maxillary sinuses and multi-angle lateral and posterior-anterior views of the temporo-mandibular joint. Partial projections can be selected as a comfortable alternative to intra-oral images for patients with a strong gag reflex.

DTS application
Hyperion’s additional three-dimensional DTS application enables you not only to view the panoramic image of the dentition, but once the DTS process is complete, you can also explore the third dimension related to a specific volume of the upper and lower jaw.

Inspection of surgical site
The selection of a region of interest is done within a rectangular area directly on a panoramic radiographic image of the patient in question, or by a template of an average patient. Field of view: 4x4x10cm.

Being able to glance through transversal slices of the area in question on a PC screen is extremely useful to whoever practices implantology, simply because it offers accurate radiographic data to work with, perfect for reliable (1:1) measurements, with the precision of 0.15mm pixel size.

Dental MoS

Dental MoS series have been used as trusted professional chamber furnaces for many years in dental laboratories. Available with brick and fiber insulation elements, with a wide variety of options, these models can be optimally used for high temperature procedures.

Standard Dental MoS series furnaces cover a range of temperatures up to 1600°C, all of which have front loading for easy operation and double skin construction to maintain a cooler outer case.

Important advantage of the model is that element change is very easy and economic. Furnaces use high quality Molybdenum Disilicide heating elements, providing a very long service life.

Galvanized coating covered epoxy painted structure, providing longer life time and aesthetics.

Dental-MoS_160-1

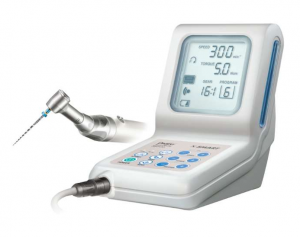

X-Smart
Endodontic Motor

The X-Smart™ endodontic micromotor is a simple and easy to use unit designed for GDPs carrying out rotary endodontics.

  • Simple, flat control panel and LCD screen
  • Advanced handpiece – light and small head that can be adjusted to 6 positions
  • Compact and portable – operates with or without foot pedal and can be battery operated as well as electrically powered
  • Three auto-reverse modes
  • 9 adjustable programme selections

xsmart1

W&H Implantmed

Your reliable partner in implantology

Implantmed excels by virtue of its ease of operation, powerful motor and automatic
thread cutter function.

The logically designed operating concept
supports implantologists and ensures all
programs can be set up easily, by
pressing the buttons on the unit or by
operating the foot control.

Your advantages at a glance

  • Easy to use
  • Powerful motor with 5.5 Ncm torque
  • Wide speed range: 300 up to 40,000 rpm
    at the motor
  • Precise torque limitation: 5 to 70 Ncm
  • Automatic thread cutter function
  • Motor with cable, thermo washer disinfectable and sterilizable

implantmed_product-detail

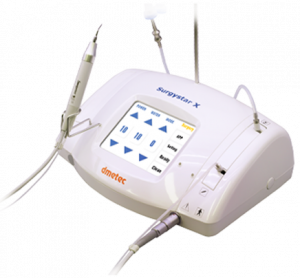

Dmetec Surgystar Ultrasonic Piezo Implant Bone Surgery

SURGYSTAR PIEZO SURGERY COMPLETE SET comes in a beautiful plastic molded foam insulated case with cassette tray for autoclave and 11 piece tip assortment.

  • Tips and handpiece are compatible with most brands such as Silfradent, Mectron and NSK.
  • The unit is very simple and user friendly.
  • All instructions are also visual on the nice LCD display and settings are very easy to follow.
  • DVD on setting up system and how to properly use.
  • The unit is easy to control the handpiece and cut with no practice or experience.
  • 2 Years Manufacturer Warranty
  • FDA Approved

sugystar-ultrasonic-piezo

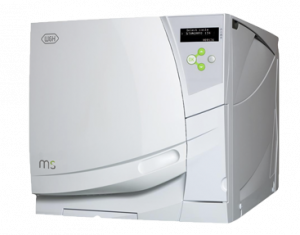

MS The Ultimate Type N Sterilizer

The MS is the latest addition to the W&H range of sterilizers offering economical reliability.

The MS boasts a simple user interface with comprehensive menus.

The automated door locking system ensures the door is securely locked and sealed prior to the start of the cycle.

The MS can easily be installed on most work surfaces as with its adjustable feet it fits even on the narrowest of benches.

The MS offers a delayed cycle start to fit in with the working day.

To keep your sterilizer clean, the built-in filter prevents dust from settling on internal components, resulting in:

  • consistently good performance
  • reduced maintenance costs
  • less dust dispersal into the
    environment

Designed to evolve according to the needs of your practice, the MS offers a great price performance ratio. You have the flexibility to enhance your system by adding the optional Multiport if required, which allows you to transfer cycle data onto a USB stick or a label printer. You also have the option to connect to the W&H water treatment and filling systems Multidem or Osmo.

MS Type N Sterilizer

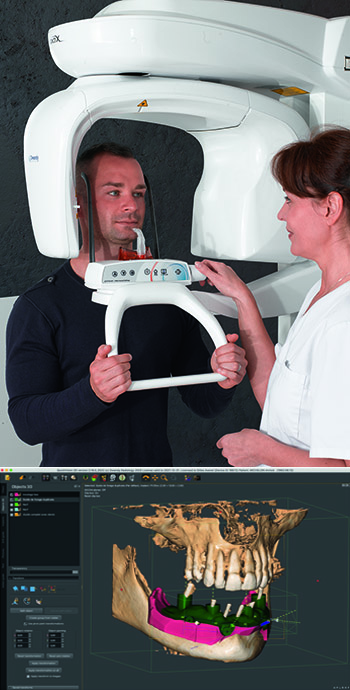

Owandy I-Max 3D

The I-Max Touch 3D, the most recent addition to Owandy’s range of digital imaging solutions is evolutive, simple and fast. The panoramic unit acquires 3D exams and complete panoramic exams in the wink of an eye. The cephalometric option further extends the capabilities of the I-Max Touch 3D through the acquisition of radiographies of the skull.

Patient positioning in seconds. Guided light beams, designed to save you valuable time. Universal 3D volume measuring 9.3 X8.3 ensures the capture of the entire jaw in a single exposure. Cone beam high definition sensor creates high definition and contrast allowing a more precise diagnosis. Low radiation for improved protection and a reduced dose of x-rays to the patient. Exposure time eight seconds.

14 Programs that allows you to produce any clinical exams:

  • Standard adult or child panoramic
  • Left or right semi-panoramic
  • Reduced dose panoramic
  • Bitewing mode
  • Incisive block
  • Maxillary Sinus
  • Panoramic with improved orthogonality
  • TMJ open/closed mouth
  • 4 quadrants/Tomographic slices

Sim Plant Pro software is a standard feature on the Ownady panoramic Sim Plant Pro is an all in one imaging, diagnosis and treatment planning software built right in.
